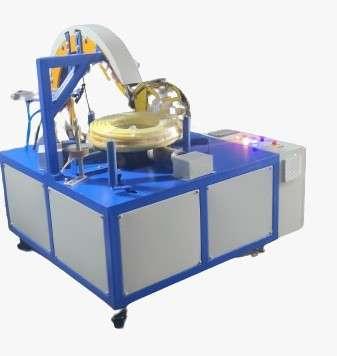

Horizontal Coil Wrapping Machine for Cable

The horizontal coil wrapping machine is designed to wrap cables in a spiral manner, making it ideal for efficient and secure packaging. This versatile machine, also known as a cable wrapping machine, can be utilized for various wrapping applications. It is suitable for use with stretch film and HDPE materials for wrapping non-woven coils, cables, irrigation pipes, flexible pipe coils, suction pipe coils, small cables, cable coils, and more. The cable wrapping function helps reduce labor costs by automating the processes of film holding, bundle wrapping, and film cutting.

Wrapping Process

1. Rotation and Wrapping: The three cradle rollers rotate the bundle, initiating the wrapping process as the wrapping ring moves from the inner to the outer edge of the cable.
2. Material Release: The holding cylinder releases the end of the wrapping material.
3. Film Overlap Adjustment: The machine automatically adjusts the film overlap ratio based on pre-set parameters.
4. Film Application: The wrapping material is fed and wrapped around the cable as it rotates on the cradle roller. Branding tape is applied circumferentially around the cable automatically, with the starting and ending points managed manually.

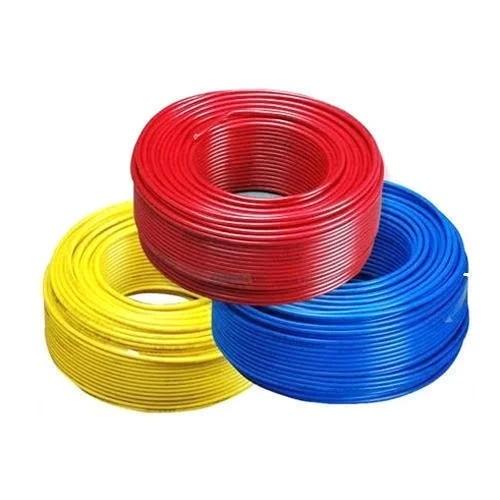

Standard Cable Coil Specifications

• Cable Inner Diameter: 200 mm (minimum required)
• Cable Outer Diameter: 350 mm to 600 mm
• Cable Width: 50 mm to 200 mm
• Cable Weight: Maximum 30 kg

Customization Options

The machine can be tailored to meet specific customer requirements, ensuring flexibility and efficiency for various industrial applications.
