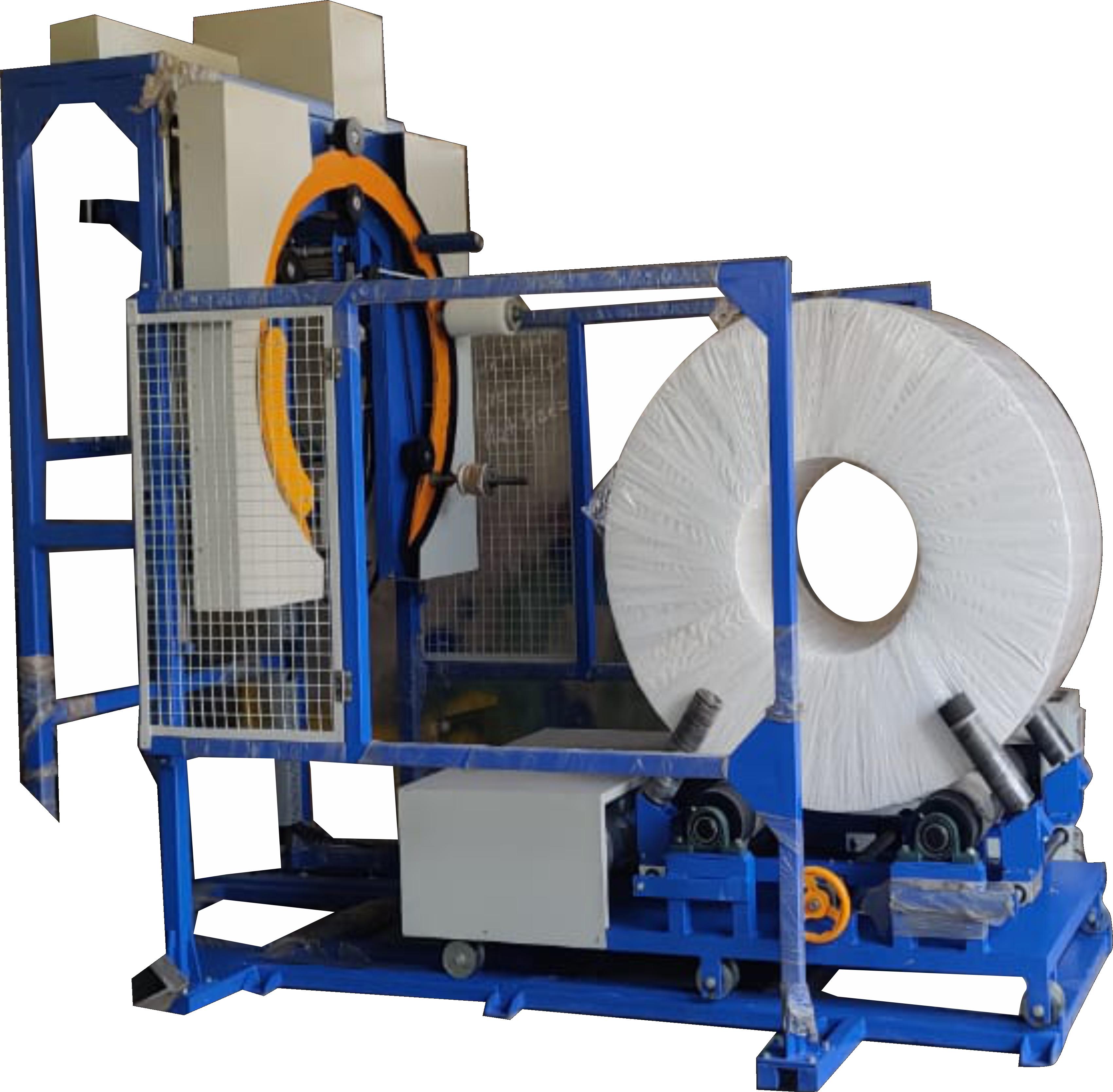

Vertical Coil Wrapping Machine for Steel Coil

The vertical coil wrapping machine is designed to wrap steel coils in a spiral manner, making it ideal for efficient and secure packaging. This versatile machine, also known as a steel coil wrapping machine, can be utilized for various wrapping applications. It is suitable for use with stretch film and HDPE materials for wrapping steel coils, Steel Wire ,Steel Strips Coil, Copper Strips Coil,  flexible rubber hose pipe coils, and more. The steel coil wrapping function helps reduce labor costs by automating the processes of film holding, bundle wrapping, and film cutting.

Wrapping Process:

1. Rotation and Wrapping: The two cradle rollers rotate the bundle, initiating the wrapping process as the wrapping ring moves from the inner to the outer edge of the steel coil.
2. Material Release: The holding cylinder releases the end of the wrapping material.
3. Film Overlap Adjustment: The machine automatically adjusts the film overlap ratio based on pre-set parameters.
4. Film Application: The wrapping material is fed and wrapped around the steel coil as it rotates on the cradle roller. Branding tape is applied circumferentially around the steel coil automatically, with the starting and ending points managed manually.

Standard Steel Coil Specifications:

• Steel Coil Inner Diameter: 410 mm (minimum required)
• Steel Coil Outer Diameter: 700 mm to 1400 mm
• Steel Coil Width: 100 mm to 400 mm
• Steel Coil Weight: 400 to 16000 kg

Customization Options:

The machine can be tailored to meet specific customer requirements, ensuring flexibility and efficiency for various industrial applications.
