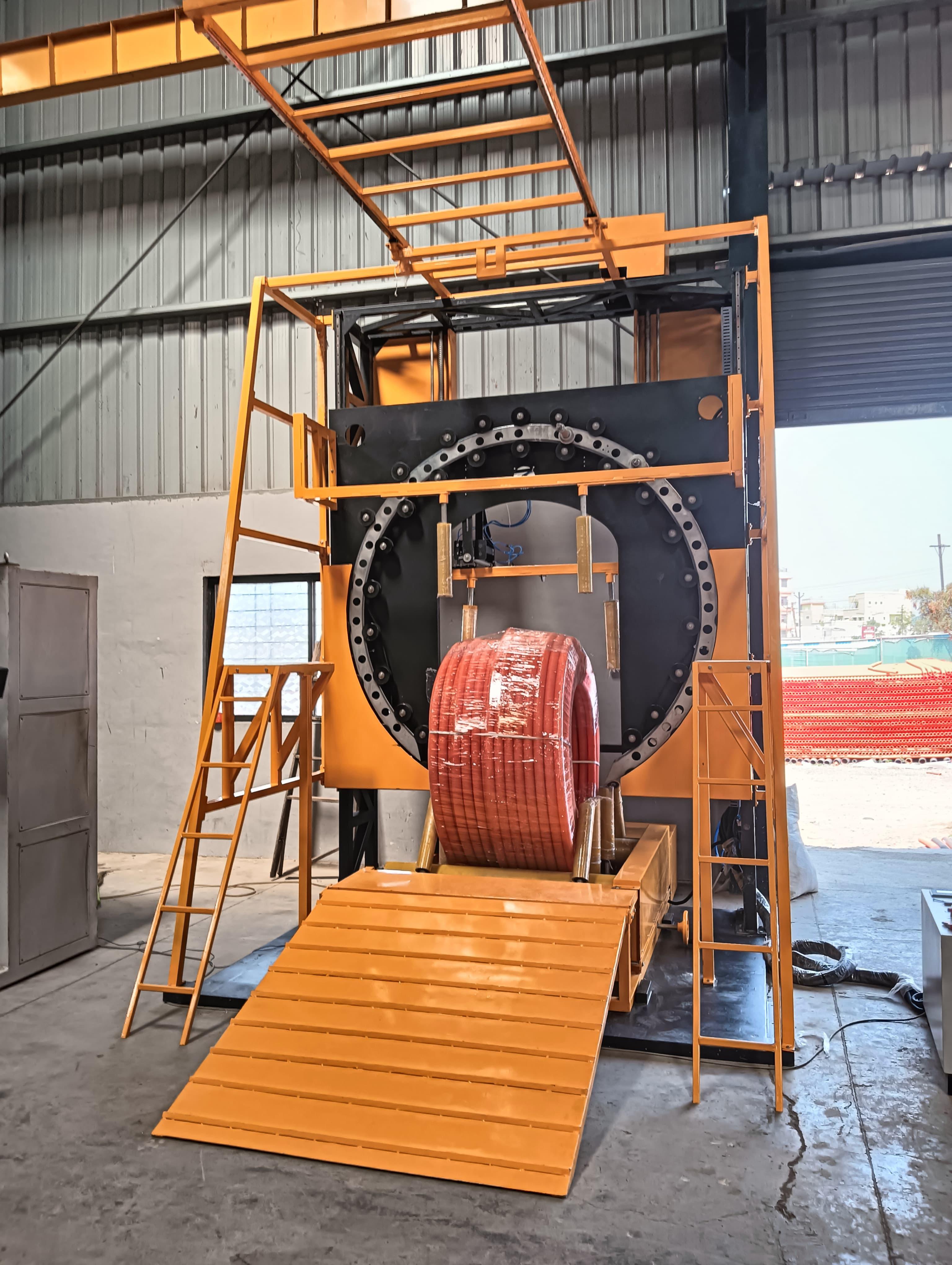

Vertical Coil Wrapping Machine for Hose Pipe

The vertical coil wrapping machine is designed to wrap hose pipes in a spiral manner, making it ideal for efficient and secure packaging. This versatile machine, also known as a hose pipe wrapping machine, can be utilized for various wrapping applications. It is suitable for use with stretch film and HDPE materials for wrapping non-woven coils, hose pipes, irrigation pipes, flexible pipe coils, suction pipe coils, small hose pipes, and more. The hose pipe wrapping function helps reduce labor costs by automating the processes of film holding, bundle wrapping, and film cutting.

Wrapping Process:

1. Rotation and Wrapping: The two cradle rollers rotate the bundle, initiating the wrapping process as the wrapping ring moves from the inner to the outer edge of the hose pipe.
2. Material Release: The holding cylinder releases the end of the wrapping material.
3. Film Overlap Adjustment: The machine automatically adjusts the film overlap ratio based on pre-set parameters.
4. Film Application: The wrapping material is fed and wrapped around the hose pipe as it rotates on the cradle roller. Branding tape is applied circumferentially around the hose pipe automatically, with the starting and ending points managed manually.

Standard Hose Pipe Coil Specifications:

• Hose Pipe Inner Diameter: 250 mm (minimum required)
• Hose Pipe Outer Diameter: 800 mm to 1000 mm
• Hose Pipe Width: 100 mm to 300 mm
• Hose Pipe Weight: Maximum 30 kg

Customization Options:

The machine can be tailored to meet specific customer requirements, ensuring flexibility and efficiency for various industrial applications.
